BOT Series is a MIG / MAG / TIG neck model for medium work intensity applications. Adaptable to many robotic and automatic applications, they are powerful and easy to maintain models without the need to use a cooling unit.
The welding systems for industrial robots BOT series are designed for 24-hour working cycles and have been developed for intensive use. They are precise and specially adapted to long working cycles.

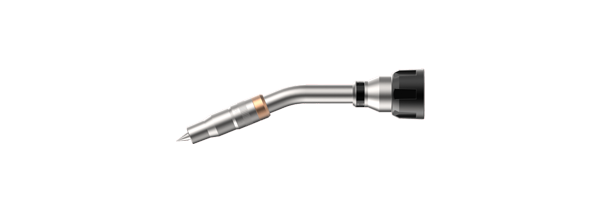

BOT Series Robotic Necks
Product Features
- Compatible with all robot systems iBOT*, eBOT*. This allows you to change necks between different systems (gas cooled power cable systems).
- Stainless steel outer casing provides greater stability during temperature changes and maintains its TCP continuously.
- Extra cooling at the contact point with the COOLTIP system.
- Multiple neck geometries possible for any application.
- iBOT system for robots with hollow wrist shaft and internal wiring to axis 6.
- eBOT system for standard robots with hollow wrists and external wiring to axis 6.
- cBOT system that can be used on both standard robots and hollow shaft robots by changing the connecting plate.
Neck Models
- BOT-30G 300A Air Cooled
- BOT-32W 350A Water Cooled
- BOT-31EC 350A Water Cooled
- BOT-41EC 400A Water Cooled
- BOT-40W 500A Water Cooled
- BOT-50W 550A Water Cooled
- BOT-60W 600A Water Cooled
- BOT-T5W 400A Tig Water Cooled
